quiddam YHB
YHB/175 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 175 | |
| Celeritas rated (m / s) | ≤1.6 | |
| Massa minima (kg) | 600 | |
| Maximam molem (kg) | 3500 | |
| Free altitudo H1 (mm) | 540 | |
| Adscendens dimensiones | (mm) 150x100 | |
| (mm) 4-014 | ||

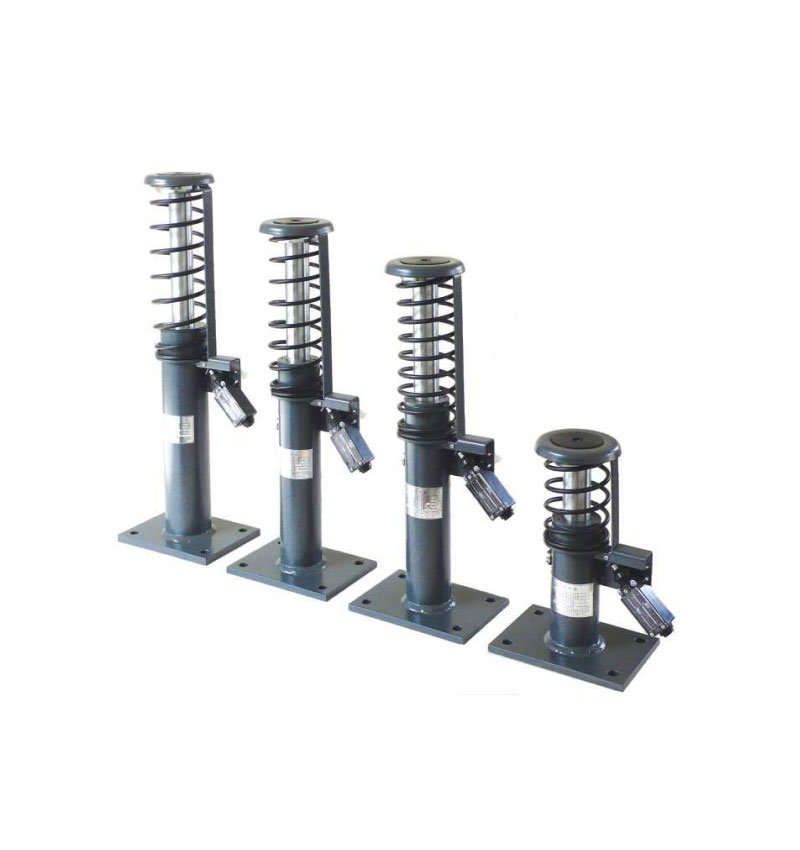

YHB HYDRAULICUS Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free altitudinis |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
Certification |
| YHB/70 | 70 | 285 | ≤1.0 | 600 | 3500 | GB EC |
| YHB/160 | 160 | 500 | ≤1.5 | 600 | 3500 | GB EC |
| YHB/175 | 175 | 540 | ≤1.6 | 600 | 3500 | GB |
| YHB/210 | 210 | 600 | ≤1.75 | 600 | 3500 | GB EC |
Quiddam YHB series nulla refueling
Proprium
Consignata compages
Nulla cibus consummatio
Nulla refueling in situ, facile operari
Viride et environmentally- amica
Proprium
Consignata compages
Nulla cibus consummatio
Nulla refueling in situ, facile operari
Viride et environmentally- amica
YHB/175M Sheet of Technical Parameter
| Plaga quiddam H(mm) | 175 | |
| Celeritas rated (m / s) | ≤1.6 | |
| Massa minima (kg) | 600 | |
| Maximam molem (kg) | 3500 | |
| Free altitudo H1 (mm) | 540 | |
| Adscendens dimensiones | (mm) 150x100 | |
| (mm) 4-014 | ||
YHB HYDRAULICUS Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free altitudinis |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
| YHB/70M | 70 | 285 | ≤1.0 | 600 | 3500 |
| YHB/160M | 160 | 500 | ≤1.5 | 600 | 3500 |
| YHB/175M | 175 | 540 | ≤1.6 | 600 | 3500 |
| YHB/210M | 210 | 600 | ≤1.75 | 600 | 3500 |
quiddam YHB
YHB/275 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 275 | |
| Celeritas rated (m / s) | ≤2.0 | |
| Massa minima (kg) | 860 | |
| Maximam molem (kg) | 3500 | |
| Free altitudo H1 (mm) | 780 | |
| Adscendens dimensiones | (mm) 150x100 | |
| (mm) 4-014 | ||
YHB HYDRAULICUS Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free altitudinis |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
| YHB/275 | 275 | 780 | ≤2.0 | 860 | 3500 |
| YHB/435 | 435 | 1132 | ≤2.5 | 860 | 4550 |
quiddam YHA
YHA/275 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 275 | |
| Celeritas rated (m / s) | ≤2.0 | |
| Massa minima (kg) | 860 | |
| Maximam molem (kg) | 3500 | |
| Free altitudo H1 (mm) | 786 | |
| Adscendens dimensiones | (mm) 150x100 | |
| (mm) 4-014 | ||
YHA HYDRAULICUS Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free altitudinis |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
Certification |
| YHA/80 | 80 | 314 | ≤1.0 | 600 | 3500 | GB |
| YHA/210 | 210 | 600 | ≤1.75 | 600 | 3500 | GB |
| YHA/275 | 275 | 786 | ≤2.0 | 860 | 3500 | GB EC |
| YHA/425 | 425 | 1128 | ≤2.5 | 860 | 3500 | GB EC |
Quiddam YH2
YH2/270 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 270 | |
| Celeritas rated (m / s) | ≤2.0 | |
| Massa minima (kg) | 900 | |
| Maximam molem (kg) | 4550 | |
| Free altitudo H1 (mm) | 765 | |
| Adscendens dimensiones | (mm) 150x100 | |
| (mm) 4-014 | ||
YH2 Hydraulic Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free altitudo |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
| YH2/210 | 210 | 622.5 | ≤1.75 | 900 | 4550 |
| YH2/270 | 270 | 765 | ≤2.0 | 900 | 4550 |
| YH2/435 | 435 | 1135.5 | ≤2.5 | 900 | 4550 |
Quiddam YH/830 1080 1122
YH/1080 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 1080 | |
| Celeritas rated (m / s) | ≤4.0 | |
| Massa minima (kg) | 1250 | |
| Maximam molem (kg) | 4550 | |
| Free altitudo H1 (mm) | 2910 | |
| Adscendens dimensiones | (mm) 200x150 | |
| (mm) 4-017.5 | ||
YH Hydraulic Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free Altitudo |
(m/s) celeritas rated |
(Kg) Mininum mass |
(Kg) Maximun mass |
Certification |
| YH/830 | 830 | 2260 | ≤3.5 | 900 | 4550 | GB EC |
| YH/1080 | 1080 | 2910 | ≤4.0 | 1250 | 4550 | GB EC |
| YH/1122 | 1122 | 2994 | ≤4.07 | 1700 | 5000 | GB |
Quiddam YH/1491
YH/1491 Sheet of Technical Parameter
| Plaga quiddam H(mm) | 1491 | |
| Celeritas rated (m / s) | ≤4.7 | |
| Massa minima (kg) | 2500 | |
| Maximam molem (kg) | 5000 | |
| Free altitudo H1 (mm) | 3732 | |
| Adscendens dimensiones | (mm) 200x150 | |
| (mm) 4-022 | ||
YH Hydraulic Buffer
| Type | H(mm) Plaga quiddam |
H1(mm) Free Altitudo |
(m/s) celeritas rated |
(Kg) Minimum massa |
(Kg) Maximum massa |
| YH/1491 | 1491 | 3732 | ≤4.7 | 2500 | 5000 |
